Features & Benefits
- Ideal for Public Aquarium, Fish Farms and Aquaculture Centres
- Low running cost
- Easy Maintenance
- Plug and Play
- Powered by our very own Blaster Pumps using Neodymium Magnet, Silicon Nitrite Shaft and Bearings
Commercial, Reactors
Bio Reactor (6 models available)
The Marine Specialist”

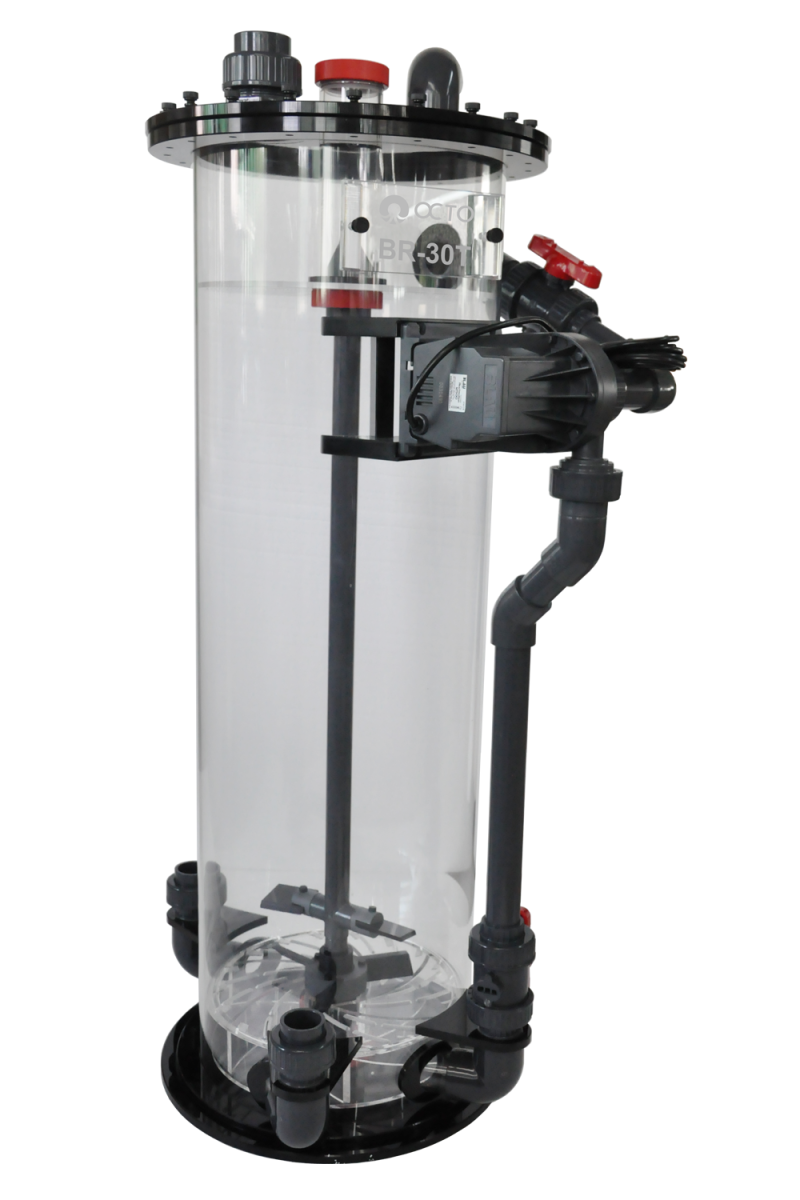

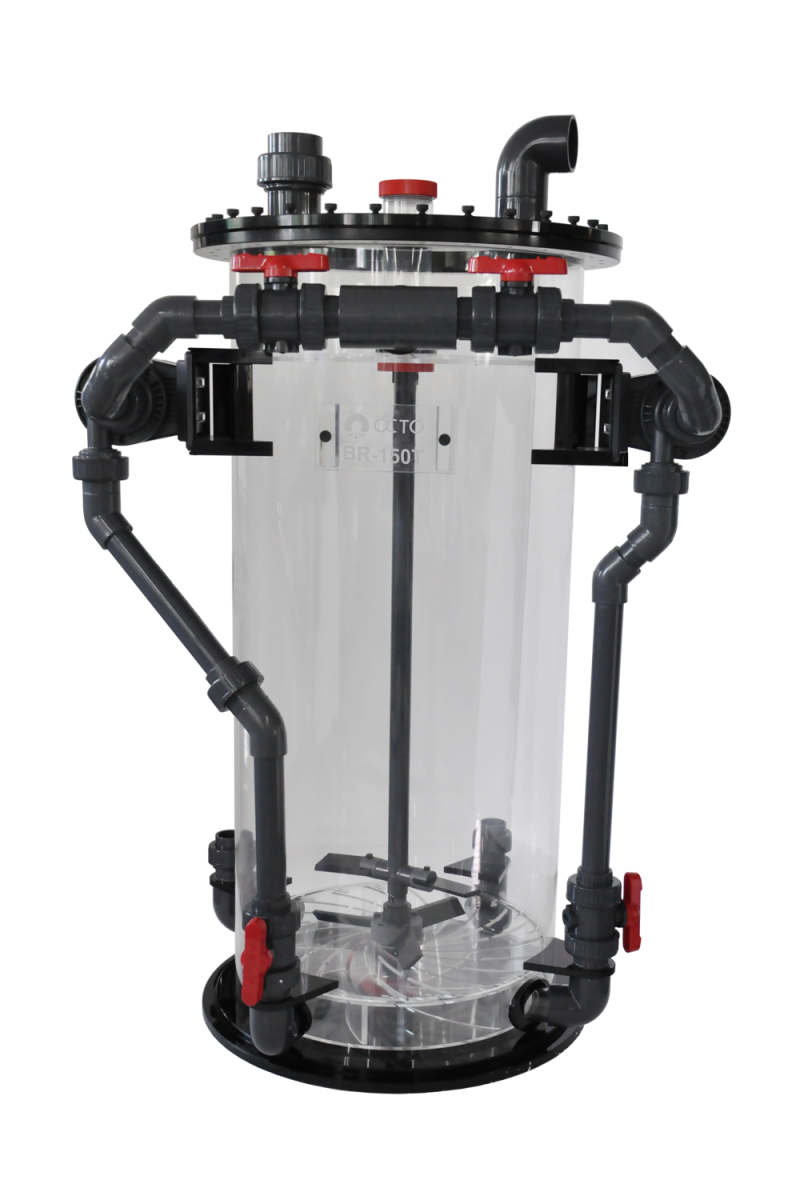

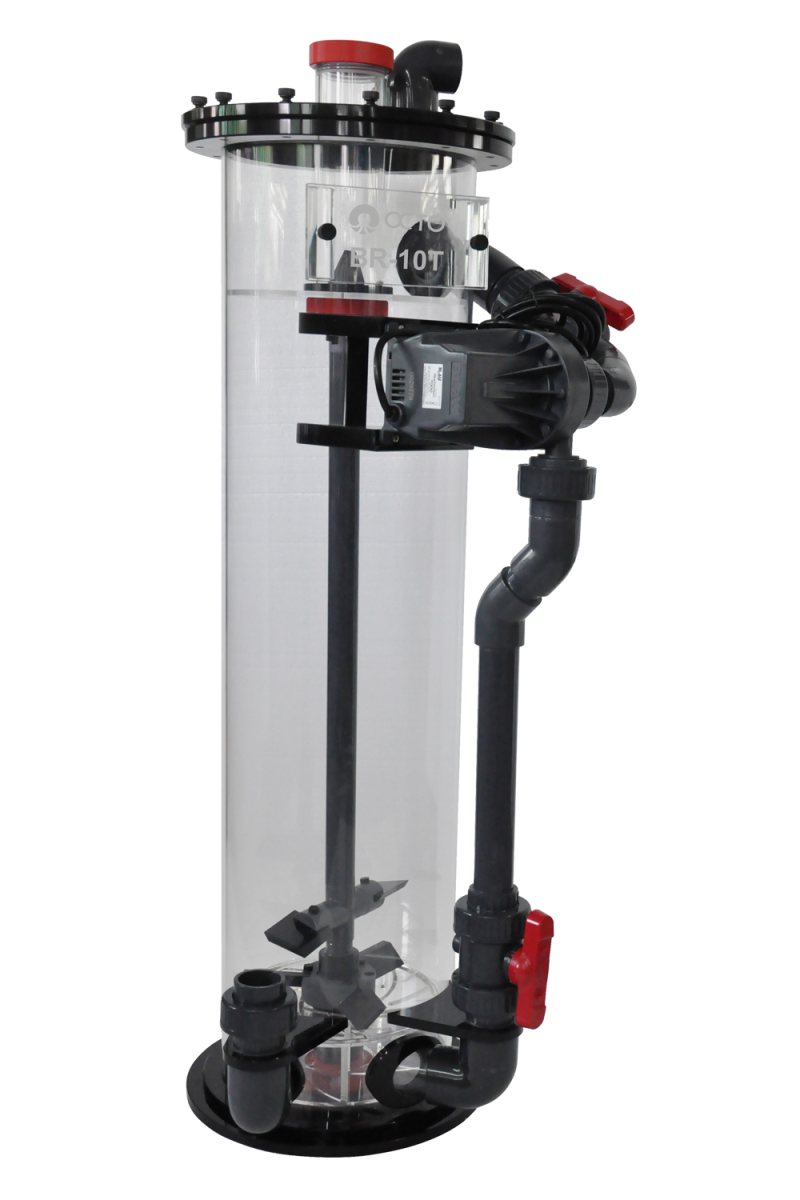

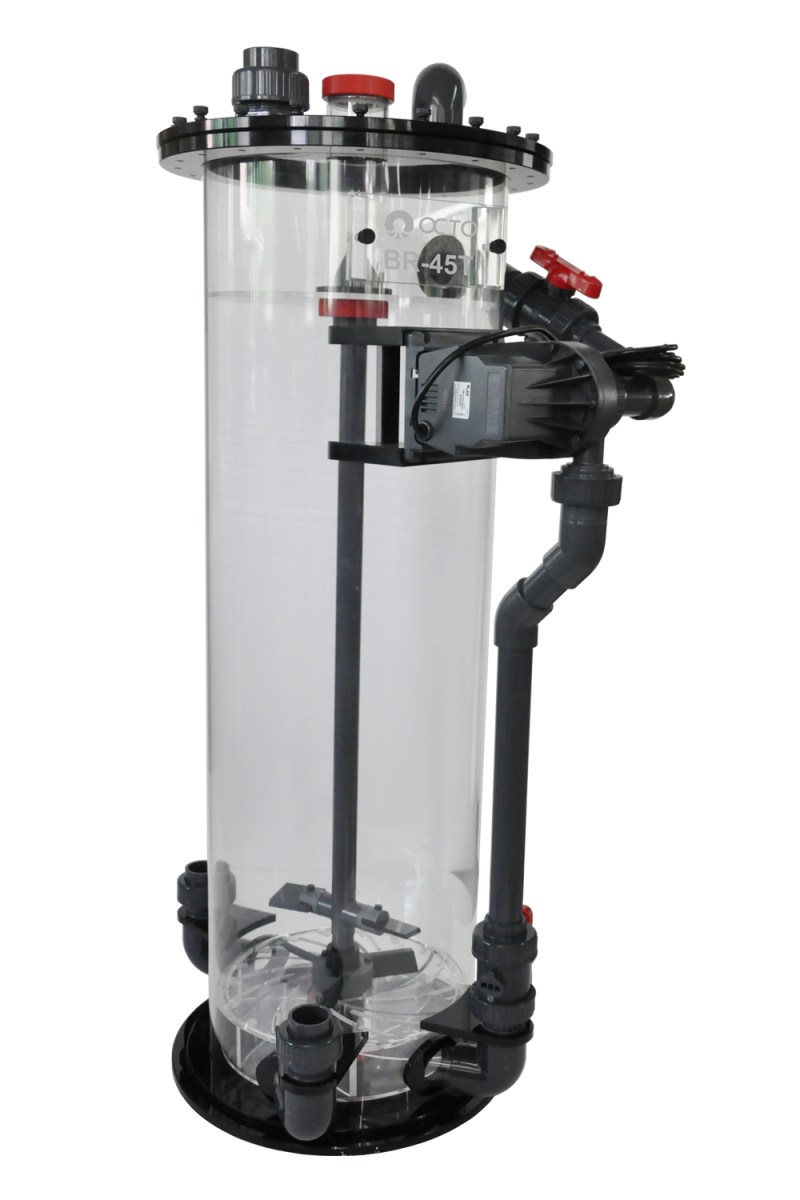

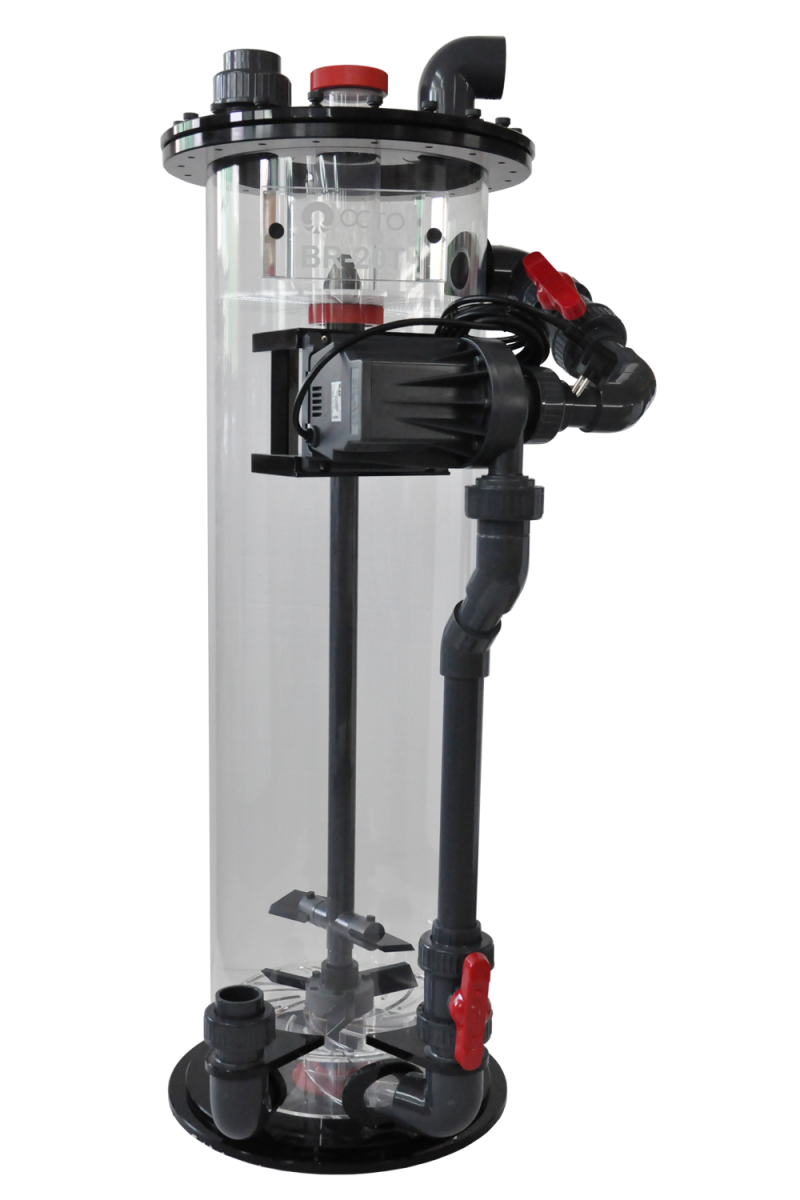

Model No.: BR-05T, BR-10T, BR-150T, BR-20T, BR-30T, BR-45T
Overview
Our range of product extend beyond the Marine Hobbyist. We also develop products for the commercial sector including Public Aquariums, Fish Farms and Aquaculture Centres up to 100,000 Literage (26,000 USGal) per unit.
We have a range of standard (Q series) as well as customised products to suit the various needs of different customers worldwide.
Please contact us at info@reefoctopus.com should you need commercial equipment to suit your specific needs.
What is included
| BR-05T | BR-10T | BR-150T | |||||||
| Article Code | Items | Model No. | Qty | Model No. | Qty | Article Code | Items | Model No. | Qty |
| a | – | 1 | – | 1 | a | – | 1 | ||
| b | – | 1 | – | 1 | b | – | 1 | ||
| c | Water outlet | – | 1 | – | 1 | c1 | – | 1 | |
| d | – | 1 | – | 1 | c2 | – | 1 | ||
| e | – | 1 | – | 1 | c3 | – | 1 | ||
| f | – | 1 | – | 1 | c4 | – | 1 | ||
| g | Screw | M8*25 | 12 | M8*25 | 12 | c5 | – | 1 | |
| h | O Ring | – | 1 | – | 1 | d | – | 1 | |
| i | Chamber | – | 1 | – | 1 | e | – | 1 | |
| j | HY-Pump | HY-5000W | 1 | HY-7000W | 1 | f | – | 1 | |
| k | Water inlet union | – | 1 | – | 1 | g | Screw | M8*35 | 30 |
| l | Connection Parts | – | 1 | – | 1 | h | O Ring | – | 1 |
| m | Connection Parts | – | 1 | – | 1 | i | Chamber | – | 1 |
| n | Pole | – | 1 | – | 1 | j | HY-Pump | HY-12500W | 2 |
| o | Screw | – | 2 | – | 2 | k | Water inlet union | – | 2 |
| p | – | 2 | – | 2 | l1 | Connection Parts 1 | – | 1 | |
| q | Screw | – | 1 | – | 1 | l2 | Connection Parts 3 | – | 1 |
| r | Screw | – | 1 | – | 1 | m1 | Connection Parts 2 | – | 1 |
| s | Union | – | 1 | – | 1 | m2 | Connection Parts 4 | – | 1 |
| t | O Ring | – | 1 | – | 1 | n | Pole | – | 1 |
| u | Turntable | – | 1 | – | 1 | o | Screw | – | 2 |
| v | Shaft | – | 1 | – | 1 | p | – | 2 | |
| – | – | – | – | – | q | Screw | – | 1 | |
| – | – | – | – | – | r | Screw | – | 1 | |
| – | – | – | – | – | s | Union | – | 1 | |
| – | – | – | – | – | t | O Ring | – | 1 | |
| – | – | – | – | – | u | Turntable | – | 1 | |
| – | – | – | – | – | v | Shaft | – | 1 | |
| BR-20T | BR-30T | BR-45T | |||||
| Article Code | Items | Model No. | Qty | Model No. | Qty | Model No. | Qty |
| a | – | 1 | – | 1 | – | 1 | |
| b | – | 1 | – | 1 | – | 1 | |
| c1 | – | 1 | – | 1 | – | 1 | |
| c2 | – | 1 | – | 1 | – | 1 | |
| c3 | – | 1 | – | 1 | – | 1 | |
| c4 | – | 1 | – | 1 | – | 1 | |
| c5 | 1 | – | 1 | – | 1 | ||
| d | – | 1 | – | 1 | – | 1 | |
| e | – | 1 | – | 1 | – | 1 | |
| f | – | 1 | – | 1 | – | 1 | |
| g | Screw | M8*25 | 20 | M8*25 | 20 | M8*25 | 20 |
| h | O Ring | – | 1 | – | 1 | – | 1 |
| i | Chamber | – | 1 | – | 1 | – | 1 |
| j | HY-Pump | HY-10000W | 1 | HY-10000W | 1 | HY-12500W | 1 |
| k | Water inlet union | – | 1 | – | 1 | – | 1 |
| l | Connection Parts | – | 1 | – | 1 | – | 1 |
| m | Connection Parts | – | 1 | – | 1 | – | 1 |
| n | Pole | – | 1 | – | 1 | – | 1 |
| o | Screw | – | 2 | – | 2 | – | 2 |
| p | – | 2 | – | 2 | – | 2 | |
| q | Screw | – | 1 | – | 1 | – | 1 |
| r | Screw | – | 1 | – | 1 | – | 1 |
| s | Union | – | 1 | – | 1 | – | 1 |
| t | O Ring | – | 1 | – | 1 | – | 1 |
| u | Turntable | – | 1 | – | 1 | – | 1 |
| v | Shaft | – | 1 | – | 1 | – | 1 |
Technical Data
1. Commercial Bio Reactor
| Product | Wet/Dry | Diameter | Footprint | Height | Max bio sphere | Tank Volume | |||||||
| mm | inch | mm | inch | mm | inch | L | US Gal | L | US Gal | ||||
| BR-05T | Dry | 250 | 9.9 | 450 | 430 | 17.7 | 16.9 | 1030 | 40.6 | 5 | 1.3 | 5000 | 1320 |
| BR-10T | Dry | 250 | 9.9 | 450 | 430 | 17.7 | 16.9 | 1110 | 43.7 | 10 | 2.6 | 10000 | 2640 |
| BR-20T | Dry | 300 | 11.8 | 550 | 530 | 21.7 | 20.9 | 1180 | 46.5 | 15 | 4.0 | 20000 | 5280 |
| BR-30T | Dry | 350 | 13.8 | 600 | 580 | 23.6 | 22.9 | 1180 | 46.5 | 18 | 4.8 | 30000 | 7920 |
| BR-45T | Dry | 350 | 13.8 | 600 | 580 | 23.6 | 22.9 | 1255 | 49.4 | 25 | 6.6 | 45000 | 11880 |
| BR-150T | Dry | 500 | 19.7 | 870 | 740 | 34.3 | 29.2 | 1315 | 51.8 | 50 | 13.2 | 150000 | 39600 |
2. Circulation Pump
| Product | Model No. | Wet/Dry | Power | Max Head Height | Maximum Flow Rate | |||||||
| w | w | 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| 50 Hz | 60 Hz | m | Ft. | m | Ft. | LPH | GPH | LPH | GPH | |||
| BR-05T | HY-5000W | Both | 55 | 60 | 3.3 | 10.8 | 3.4 | 11.0 | 5200 | 1373 | 5489 | 1450 |
| BR-10T | HY-7000W | Both | 70 | 80 | 3.6 | 11.8 | 4.3 | 14.0 | 6900 | 1822 | 7382 | 1950 |
| BR-20T | HY-10000W | Both | 95 | 120 | 4.3 | 14.1 | 4.9 | 16.0 | 10000 | 2640 | 10221 | 2700 |
| BR-30T | HY-10000W | Both | 95 | 120 | 4.3 | 14.1 | 4.9 | 16.0 | 10000 | 2640 | 10221 | 2700 |
| BR-45T | HY-12500W | Both | 165 | 175 | 4.8 | 15.7 | 5.6 | 18.5 | 12500 | 3300 | 12492 | 3300 |
| BR-150T | HY-12500W*2 | Both | 330 | 350 | 4.8 | 15.7 | 5.6 | 18.5 | 12500 | 3300 | 12492 | 3300 |
| Product | Model No. | Connection Size | Freshwater/Marine | |
| Inlet | Outlet | |||
| BR-05T | HY-5000W | Ф40 (1-1/4″) | Ф32 (1″) | Both |
| BR-10T | HY-7000W | Ф40 (1-1/4″) | Ф32 (1″) | Both |
| BR-20T | HY-10000W | Ф40 (1-1/4″) | Ф32 (1″) | Both |
| BR-30T | HY-10000W | Ф40 (1-1/4″) | Ф32 (1″) | Both |
| BR-45T | HY-12500W | Ф40 (1-1/4″) | Ф40 (1-1/4″) | Both |
| BR-150T | HY-12500W*2 | Ф40 (1-1/4″) | Ф40 (1-1/4″) | Both |
Explosion Charts
Explosion Chart for BR-05T and BR-10T
Explosion Chart for BR-20T and BR-30T /BR-45T
Explosion Chart for BR-150T
Downloads
Not Available
