Controllable, Reliable and Silent
Similar to the VarioS Skimmer Pump, this VarioS circulation pump features a detachable controller, high quality ceramic shaft and bearing to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy-efficiency and safer operations.
Product: Reef Octopus (RO) Direct Current (DC) Circulation Pump
Series: VarioS Pump
Model No.: VarioS 2, VarioS 4, VarioS 6, VarioS 8
VarioS Circulation Pump
VarioS Circulation Pump
Similar to the VarioS Skimmer Pump, this VarioS circulation pump features a detachable controller, high quality ceramic shaft and bearing to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy-efficiency and safer operations.
Unlike the vast majority of circulation pumps which uses alternating current (AC), our VarioS pump boasts several key advantages over traditional AC pumps, namely, higher energy efficiency, safer operations at a working voltage of 24V, less heat produced with every volume of water flow and most notably, the variable speed control to adjust the water flow rates.
Enhanced Control
With the controller, user has full control over the flowrate by selecting amongst five preset speed settings; indicated by five lit LEDs. A 15 or 60 minute feed mode can also be engaged or disengaged with the push of a button.
A rotatable output volute orientation allows for adjustment horizontally or vertically for placement flexibility.
Under normal usage, VarioS pump has an expected lifespan/product life expectancy of 10 years.
Available in 4 models – VarioS 2 ,VarioS 4, VarioS 6, VarioS 8 .
Note: Above models are not pressure rated pump. This pump is not for second floor applications or to feed Beckett or downdraft skimmers where constant pressure is required.
Warranty:
2 years for pump

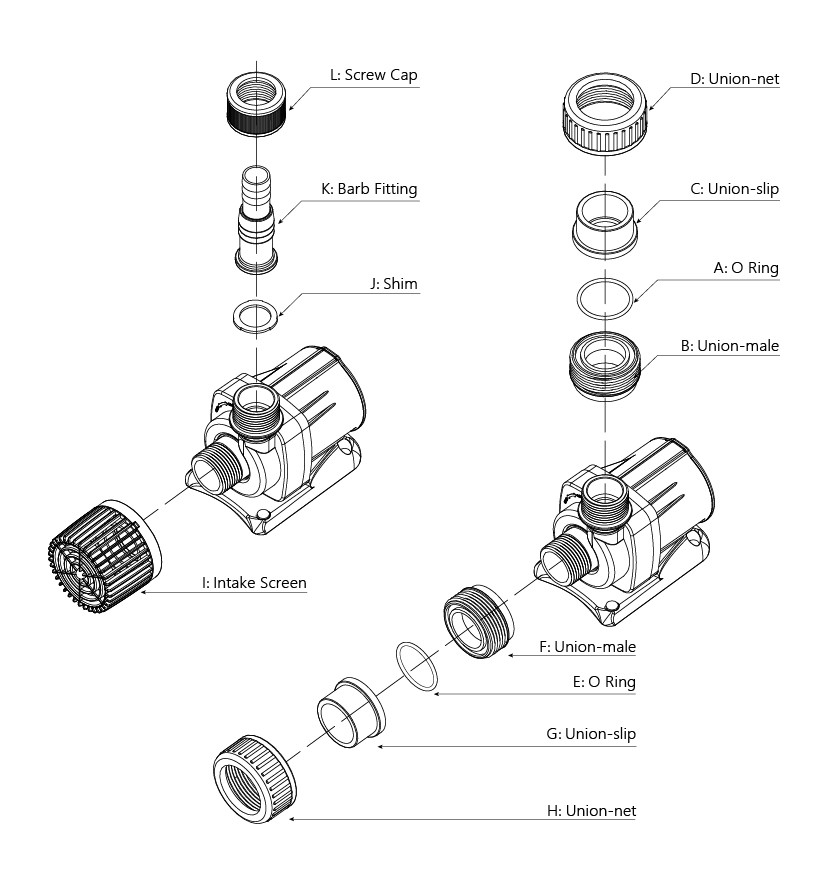

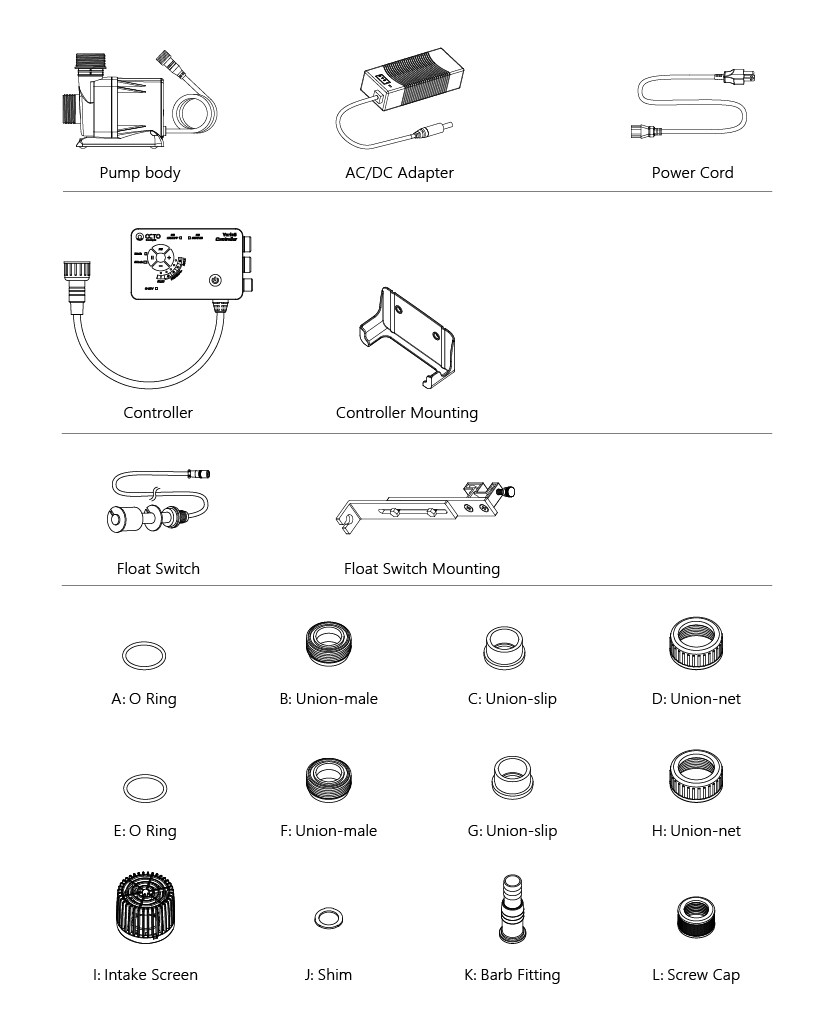

| Circulation Pump | ||
| Article | Items | Qty |
| Pump Body | 1 | |
| Power Adapter | 1 | |
| Power Cable | 1 | |
| Controller | 1 | |
| Betwork Cable | 1 | |
| Flow Switch | 1 | |
| a | O Ring | 1 |
| b | Union A | 1 |
| c | Union B | 1 |
| d | Union C | 1 |
| e | O Ring | 1 |
| f | Union A | 1 |
| g | Union B | 1 |
| h | Union C | 1 |
| i | Intake Screen | 1 |
| j | Barb Fitting | 1 |
| k | Screw Cap | 1 |
| l | Shim | 1 |
| m | Venturi | – |
| n | Air Tube | – |
| Product | Power | Wet/Dry | Power | Max Head Height | Maximum Flow Rate | Connection Size | Fresh/Water Marine | ||||
| w | w | m | Ft. | LPH | GPH | (Inlet) | (Outlet) | ||||
| VarioS 2 | DC24V | Both | 25 | 4 | 13.1 | 3000 | 792 | ø32(1″) | ø32(1″) | Both | |
| VarioS 4 | DC24V | Both | 40 | 4.5 | 14.7 | 4000 | 1056 | ø40(1-1/4″) | ø32(1″) | Both | |
| VarioS 6 | DC36V | Both | 70 | 4.9 | 16.0 | 6500 | 1720 | ø40(1-1/4″) | ø40(1-1/4″) | Both | |
| VarioS 8 | DC36V | Both | 98 | 5.7 | 18.7 | 10000 | 2646 | ø40(1-1/4″) | ø40(1-1/4″) | Both | |
