Features & Benefits
- Ultra compact, superior performance
- AQ pump specifically made for protein skimmer
- Output designed for bubble-free outflow
- Quiet operation
- High quality hand-made acrylic construction
- Easy maintenance
Classic, Protein Skimmers
Classic Protein Skimmer S Straight body (2 models available)
Over a decade of proven reliability.
Did you know?
We are the first protein skimmer manufacturer in the world that designs and produces our own skimmer pumps. Our skimmer pumps have been specifically engineered to enhance and increase the efficiency of our protein skimmers.
Product Name: Classic Space saving Skimmers
Model/Type: Space Saving Skimmers (SSS)
Series: OCTO
Model No.: Classic 110-S, Classic 150-S (Straight Body)
- Features & Benefits
- Overview
- What's included
- Technical Data
- Explosion Charts
- Downloads
- Accessories / Parts
Overview
Featuring a small footprint, the OCTO series Classic space saving skimmer. (Classic-S) is an in-sump protein skimmer ideal for aquariums with limited sump space. It is run by our very own AQ pump , encased in a solid acrylic body, can be easily disassembled for maintenance and does not require a feed pump as it draws water directly from the sump.
Available for 2 models – Classic 110-S and Classic 150-S features a straight body with a vented valve output .
Warranty (against manufacturing defect):
2 years* – pump motor only
What's included
| Article Code | Items | Classic 110-S | Classic 150-S | ||
| Model No. | Qty | Model No. | Qty | ||
| 1 | Top Cover | 2010100088 | 1 | 2010100089 | 1 |
| 2 | Collection Cup | 4020101001 | 1 | 4020102001 | 1 |
| 3 | O Ring | 1 | 1 | ||
| 4 | Skimmer Body | – | 1 | – | 1 |
| 5 | Silencer | 3020101002 | 1 | 3020102002 | 1 |
| 6 | Adjusting Pipe | – | 1 | – | 1 |
| 7 | O Ring | 1050100023 | 1 | 1050100030 | 1 |
| 8 | T-Joint | – | 1 | – | 1 |
| 9 | Plate Screw | 1042500006 | 1 | 1042500006 | 1 |
| 10 | Bubble Plate | 2010100011 | 1 | 2010100012 | 1 |
| 11 | Bubble Skimming Chamber | – | 1 | – | 1 |
| 12-1 | Adapter | – | 1 | 1042200009 | 1 |
| 12-2 | O Ring | – | 0 | 1050100028 | 1 |
| 13 | Aquatrance Skimmer Pump | 110208-C | 1 | 110210-B | 1 |
| 14 | Skimmer Base | – | 1 | – | 1 |
| 15 | Skimmer Base Screw | 1042500007 | 1 | 1042500007 | 1 |
| 16 | Air Hose | 1050300003 | 1 | 1050300003 | 1 |
| 17 | Venturi | 3020101001 | 1 | 3020102001 | 1 |
Technical Data
1. Skimmer
| Product | Wet/Dry | Pump Power | Cup Diameter | Neck Diameter | Footprint | Height | Output Size | Tank Volume | ||||||||
| W | W | mm | inch | mm | inch | mm | inch | mm | inch | L | US Gal | |||||
| 50HZ | 60HZ | |||||||||||||||
| Classic 110-S | Wet | 8 | 9 | 120 | 4.7 | 60 | 2.4 | 200 | 155 | 7.9 | 6.1 | 485 | 19.10 | ø32mm (1″) | 500 | 132 |
| Classic 150-S | Wet | 17 | 18 | 150 | 5.9 | 80 | 3.2 | 240 | 185 | 9.5 | 7.3 | 530 | 20.90 | ø40mm (1-1/1/4″) | 800 | 211 |
2. Skimmer Pump
| Product | Model No. | Wet/Dry | Air Intake | Power | Maximum Flow Rate | Connection Size ( outlet) | |||||||
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | ||||||||
| LPH | GPH | LPH | GPH | W | W | LPH | GPH | LPH | GPH | ||||
| Classic 110-S | AQ-1000S | Both | 420 | 111 | 454 | 120 | 8 | 9 | 350 | 92 | 350 | 92 | ø25(3/4″) |
| Classic 150-S | AQ-2000S | Both | 720 | 190 | 719 | 190 | 17 | 18 | 750 | 198 | 750 | 198 | ø25(3/4″) |
Electrical or other Certification
Pumps (Aquatrance) – CE certified
Explosion Charts

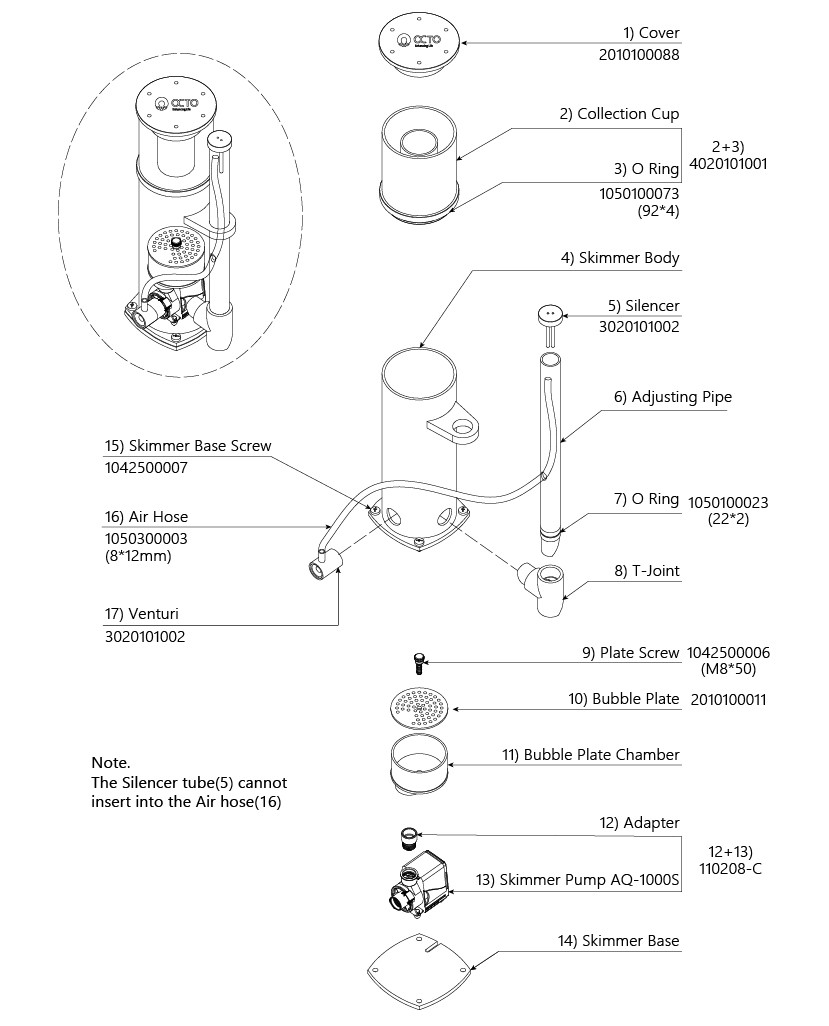

Explosion Chart for Classic 110-S
Explosion Chart for Classic 150-S
Downloads
Classic 110-S Unboxing and Maintenance Video http://outu.be/bvxPe8V9xLc
