Elite Protein Skimmer S (3 models available)

Ultimate Quality, Control and Performance.

Did you know?

We are the first protein skimmer manufacturer in the world that designs and produces our own skimmer pumps. Our skimmer pumps have been specifically engineered to enhance and increase the efficiency of our protein skimmers.

Model No.: Elite 150-S, Elite 200-S, Elite 220-S

Categories: ,

Features & Benefits

  • Ultra compact, superior performance
  • VarioS DC Pump specifically made for protein skimmers
  • High quality hand-made solid cast acrylic and machined PVC construction
  • Controllable and variable speed DC pump for energy-efficient and silent operations
  • Easy Maintenance
  • Open Volute optimise reaction within chamber
  • Sleek wine-shaped smooth cone body
  • Automated drainage system
  • Vented valve output with adjustments dial for precision control
  • Oversized air intake silencer for quieter operation
  • “Twist & Lift” collection cup
  • Connectable to external controller for enhanced monitoring and control.
  • 2 years warranty for pump motor only*

Overview

Featuring a small footprint, the OCTO series Elite space saving skimmer (Elite-S) is an in-sump protein skimmer ideal for aquariums with limited sump space. Elite-S further features high-quality cast acrylic and PVC construction, an underwater outflow for even quieter/near to silent operation, easy disassembly for maintenance with its unique “twist and lift” collection cup, a vented valve output with adjustment dial for precision control, a wine bottle shaped body which aids natural stabilisation and concentration of the organic rich foam as it rises and a professional open volute for enhanced performance.

Elite-S is run by our very own controllable VarioS skimmer pump, which features a pinwheel impeller, a detachable controller, high quality ceramic shaft and bearing to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy-efficiency and safer operations.

Unlike the vast majority of circulation pumps which uses alternating current (AC), our VarioS pump boasts several key advantages over traditional AC pumps, namely, higher energy efficiency, safer operations at a working voltage of 24V and most notably, the variable speed control to adjust the ideal mix of air and water flow into the skimmer.

Enhanced Control

With the VarioS controller, users have control over the flow rates by selecting amongst five preset speed settings; indicated by five lit LEDs. A 15 or 60 minute feed mode can also be engaged or disengaged with the push of a button.

In addition, a rotatable volute allows users to adjust the output orientation horizontally or vertically (up or down), depending on their needs.

Under normal usage, VarioS pump has an expected lifespan/product life expectancy of 10 years.

Available in 3 models – Elite 150-S, Elite 200-S and Elite 220-S.



Warranty* (against manufacturing defect):

2 years – Pump motor only



What's included

Article CodeItemsElite 150-SElite 200-SElite 220-S
Model No.QtyModel No.QtyModel No.Qty
1Top Cover402030100414020302003140203030021
2Collection Cup402030100114020302002140203030011
3O Ring10501000611050100080110501000801
4Skimmer Body111
5Screw104250000951042500009710425000097
6Skimmer PumpVarioS 2-S1VarioS 4-S1VarioS 6-S1
7Open Volute for        Skimmer Pump302030100213020302002130203020021
8Venturi302030100313020302003130203030031
9Skimmer Base402030100214020302001140203030031
10Screw104250000311042500003110425000031
11HY Silencer302030400213020305002130203050021
12Bracket201020000712010200008120102000081
13Adjust Pipe111
14O Ring105010003011050100041110501000411
15T-Joint104210001611042100017110421000171
16Pipe100
17Plug105990000111059900001110599000011
18Black Elbow105990000611059900006110599000061
19Small Tube203020003612030200036120302000361
20Drainage Hose105030000511050300005110503000051
21Air Hose105030000311050300003110503000031

Technical Data

1. Skimmer

ProductWet/DryPump PowerCup DiameterNeck DiameterFootprintHeightOutput SizeTank Volume
WmminchmminchmminchmminchLUS Gal
Elite 150-SWet251505.9803.226519510.47.753521.10ø40mm(1-1/4″)800211
Elite 200-SWet402007.91204.732525512.810.060023.60ø50mm(1-1/2″)1500396
Elite 220-SWet702208.71204.734528513.611.264025.20ø50mm(1-1/2″)2000528

2. Skimmer Pump

ProductModel No.Wet/DryPowerMax Air IntakeMaximum Flow RateConnection Size ( outlet)
WLPHGphLPHGPH
Elite 150-SVarioS 2-SBoth25900238900238ø32(1″)
Elite 200-SVarioS 4-SBoth4015003961600422ø32(1″)
Elite 220-SVarioS 6-SBoth7024006342000528ø40(1-1/4″)

Explosion Charts

Explosion Chart for Elite 150-S

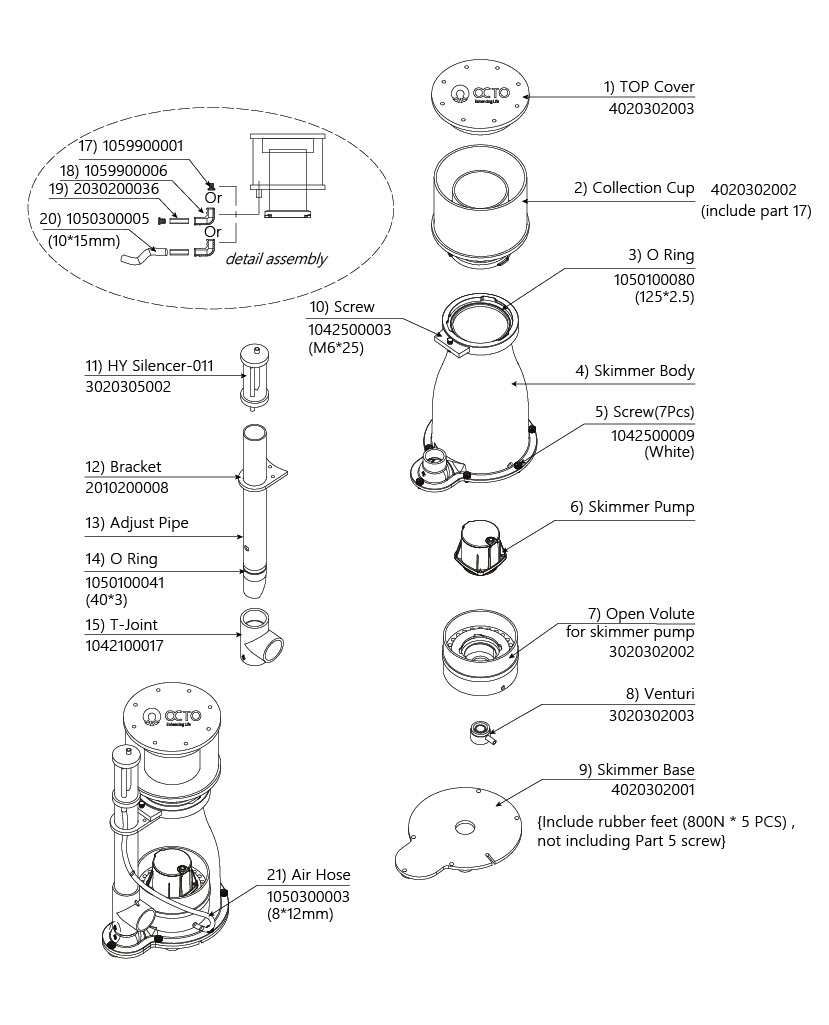

Explosion Chart for Elite 200-S

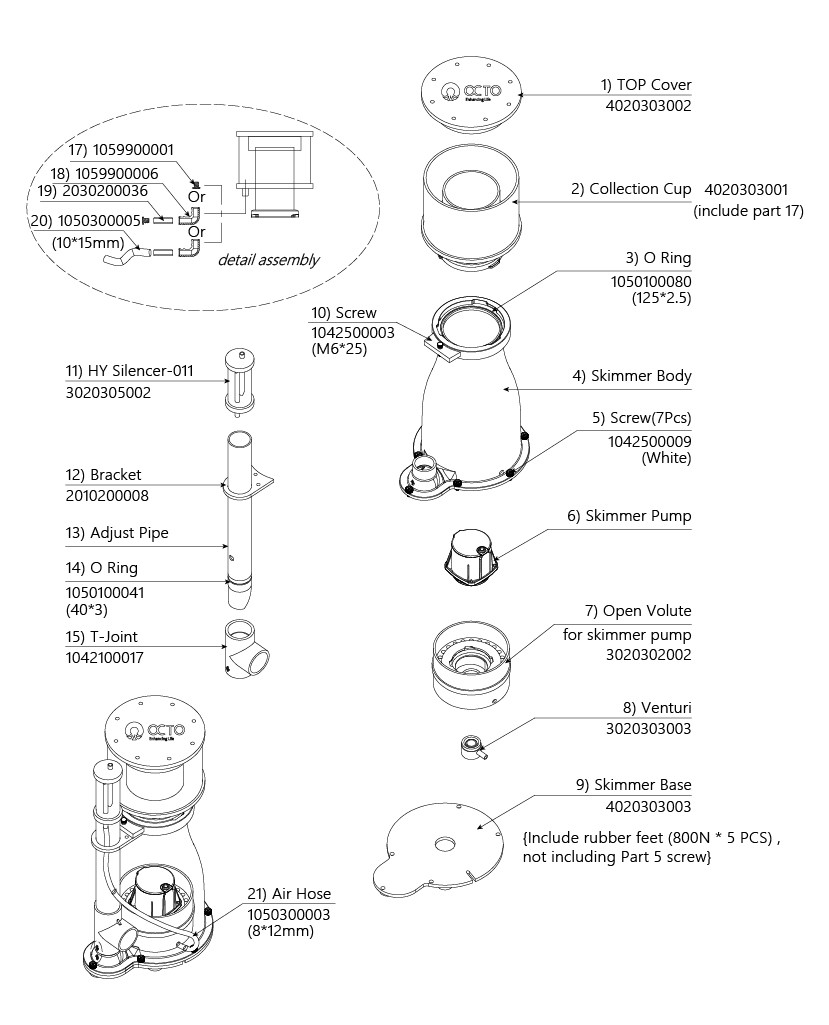

Explosion Chart for Elite 220-S





Downloads

Coming Soon

Accessories / Parts
