Features & Benefits
- High quality hand-made acrylic construction
- Reverse Cone Dispersement Plate
- Union Fittings
- Check Valveand Sieve Plate to retain media in chamber
Bio-Pellets Reactor, Reactors
Bio-Pellets Reactor (3 models available)
An ideal solution/upgrade for the discerning Hobbyist.”
Model No.: BR-MF-70, BR-MF-110, BR-MF-140
Overview
Bio-Pellets Reactor, designed for hobbyists. It helps to accelerate the growth of beneficial bacteria, and helps to ensure water clarity. It is ideal to control the Phosphate (PO4) and Nitrate (NO3) level.
These Revolutionary Media Reactors have a fluidizing cone bottom design to help keep the Bio-pellet media in suspension and evenly disperse the water upwards, without restricting the flow through the unit. These advanced reactor units also includes fastening screws on the lid for a sure tight seal and a durable acrylic screen to keep the bio-pellets within the reactor without the risk of restricting flow or clogging like other media reactors on the market.
For best results, it is highly recommended to use our Bio Spheres media.
Available in 3 modes：BR-MF-70,BR-MF-110 and BR-MF-140.

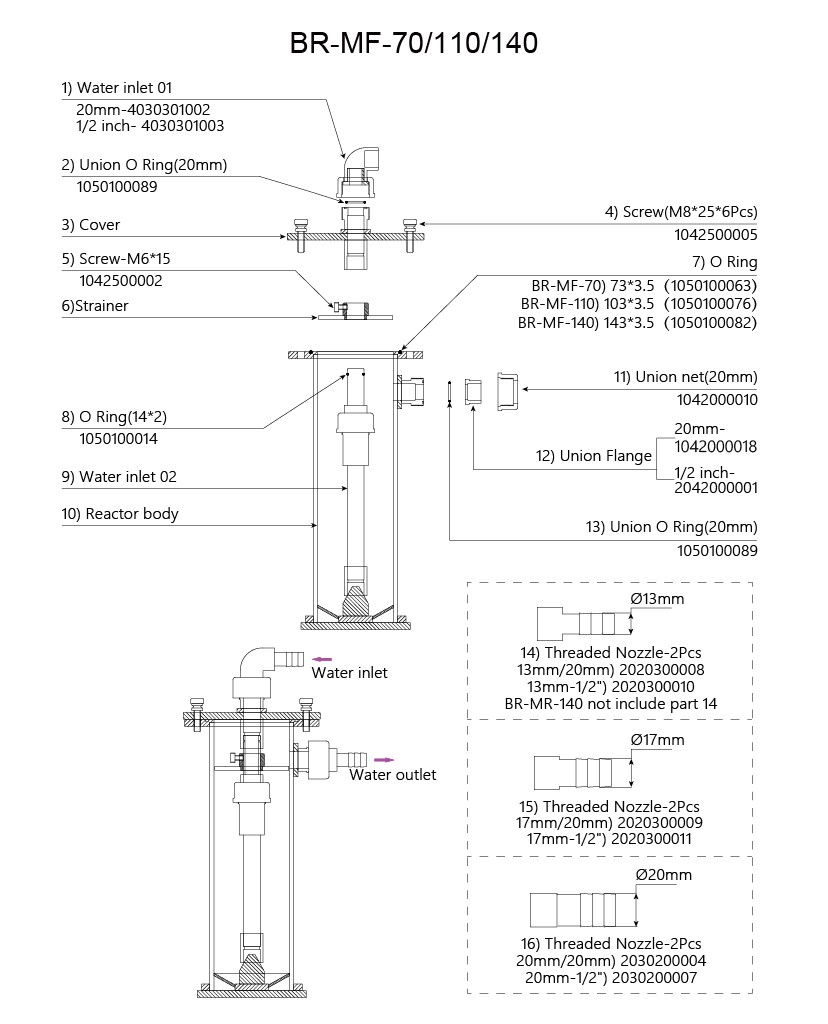

What's included
| BR-MF-70 | BR-MF-110 | BR-MF-140 | |||||
| Article | Items | Model No. | QTY | Model No. | QTY | Model No. | QTY |
| 1 | Water inlet 01 | — | 1 | — | 1 | — | 1 |
| 2 | Union O Ring | 1050100089 | 1 | 1050100089 | 1 | 1050100089 | 1 |
| 3 | Cover | — | 1 | — | 1 | — | 1 |
| 4 | Screw(M8*25) | 1042500005 | 6 | 1042500005 | 6 | 1042500005 | 6 |
| 5 | Screw(M6*15) | 1042500002 | 1 | 1042500002 | 1 | 1042500002 | 1 |
| 6 | Strainer | — | 1 | — | 1 | — | 1 |
| 7 | O Ring | 1050100063 | 1 | 1050100076 | 1 | 1050100082 | 1 |
| 8 | O Ring(14*2) | 1050100014 | 1 | 1050100014 | 1 | 1050100014 | 1 |
| 9 | Water inlet 02 | — | 1 | — | 1 | — | 1 |
| 10 | Reactor body | — | 1 | — | 1 | — | 1 |
| 11 | Union net | 1042000010 | 1 | 1042000010 | 1 | 1042000010 | 1 |
| 12 | Union Flange | — | 1 | — | 1 | — | 1 |
| 13 | Union O Ring | 1050100089 | 1 | 1050100089 | 1 | 1050100089 | 1 |
| 14 | Threaded Nozzle-13mm | — | 2 | — | 2 | — | — |
| 15 | Threaded Nozzle-17mm | — | 2 | — | 2 | — | 2 |
| 16 | Threaded Nozzle-20mm | — | 2 | — | 2 | — | 2 |
Technical Data
| Bio-Pellets Reactor | |||||||||||||||
| Product | Wet/Dry | Diameter | Footprint | Height | Max bio sphere | Tank Volume | Fitting Pump Suggestion | ||||||||
| mm | inch | mm | inch | mm | inch | L | US Gal | L | US Gal | LPH | GPH | ||||
| BR-MF-70 | Dry | 70 | 2.8 | 140 | 140 | 5.5 | 5.5 | 490 | 19.3 | 0.3 | 0.08 | 300 | 79 | 1000-1500 | 265-400 |
| BR-MF-110 | Dry | 100 | 3.9 | 170 | 170 | 6.7 | 6.7 | 530 | 20.9 | 0.7 | 0.18 | 700 | 185 | 2000-3000 | 530-800 |
| BR-MF-140 | Dry | 140 | 5.5 | 210 | 210 | 8.3 | 8.3 | 530 | 20.9 | 1.0 | 0.26 | 1000 | 264 | 3000-4000 | 800-1060 |
