“An ideal solution/upgrade for the discerning hobbyist.”
Model No.: CalReact 140, CalReact 200, CalReact 220, CalReact 3000D, CalReact 5000D
* Does not include PH probe.
An ideal solution/upgrade for the discerning hobbyist
OCTO CalReact features high-quality cast acrylic body construction, a PH probe holder to allow constant monitoring of water alkalinity (PH level) with the use of a PH probe (sold separately), a built-in bubble counter for CO₂ flow rate calculation, reverse water flow for CO₂ recirculation to maximise contact time with the coral media which produces CO2.
Powered by our VarioS DC pump which features a pinwheel impeller, a detachable controller, high quality ceramic shaft and bearing to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy-efficiency and safer operations.
Unlike the vast majority of circulation pumps which uses alternating current (AC), our VarioS pump boasts several key advantages over traditional AC pumps, namely, higher energy efficiency, safer operations at a working voltage of 24V and most notably, the variable speed control to adjust the ideal mix of air and water flow into the skimmer.
Note: Above models are not pressure rated pump . This pump is not for second floor applications or to feed Beckett or downdraft skimmers where constant pressure is required.
How it works
A calcium reactor is essentially a chamber full of Aragonite which is natural form of carbonate mineral, or commonly known as crushed hard corals. Aquarium water is circulated through this chamber along with carbon dioxide (CO2). The CO2 lowers the pH in the chamber to an acidic level which dissolves the carbonate minerals into the aquarium water. In addition to dissolving the carbonate minerals, this process also dissolves nearly all the minerals and trace elements the coral needed in order to grow.
Automated Calcium and Alkalinity supplementation – When set up properly with external controller and probe. These perimeters can be pre-set with very little monitoring and maintenance.

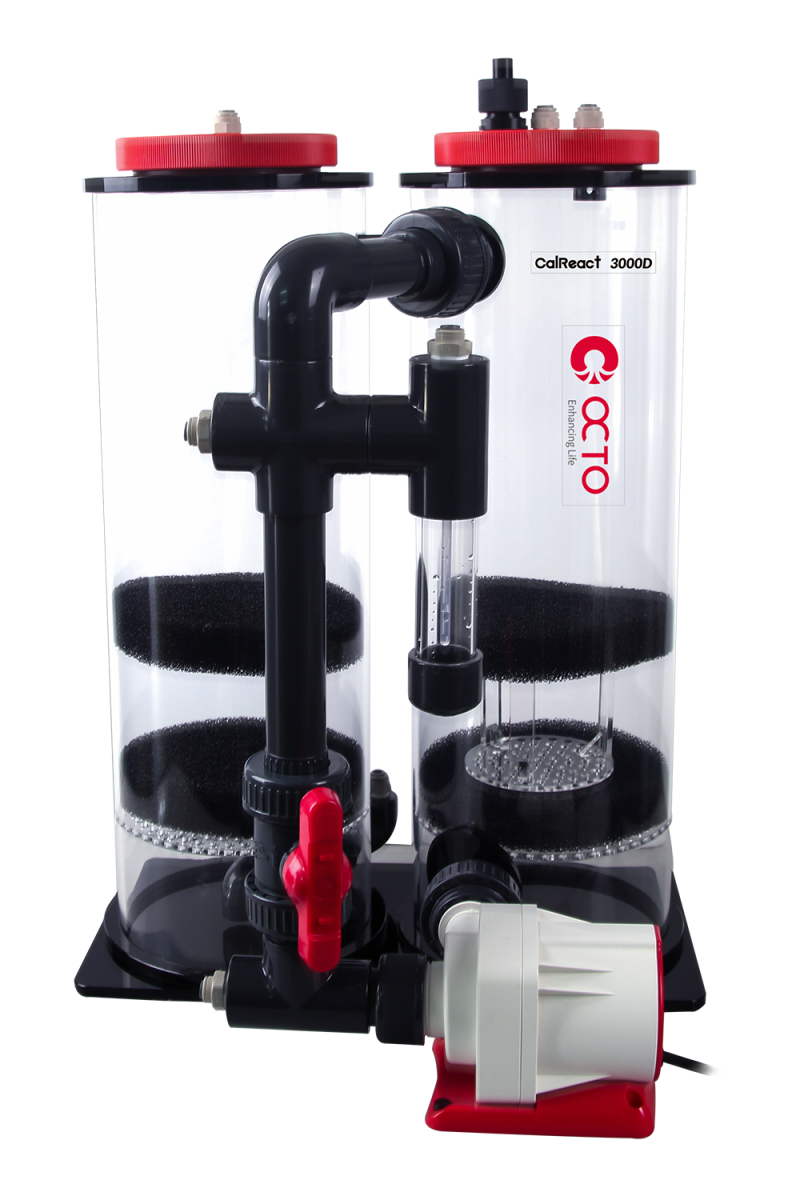

Available in 5 models – CalReact 140, CalReact 200，CalReact 220，CalReact 3000D, CalReact 5000D.
| Article Code | Items | CalReact 140 | CalReact 200 | CalReact 220 | |||
| Model No. | Qty | Model No. | Qty | Model No. | Qty | ||
| 1 | PH Probe Holder | 4030401001 | 1 | 4030401001 | 1 | 4030401001 | 1 |
| 2 | Top Cover | – | 1 | – | 1 | – | 1 |
| 3 | Bracket | 4030405001 | 1 | 4030402002 | 1 | 4030402002 | 1 |
| 4 | O Ring | 1050100076 | 1 | 1050100082 | 1 | 1050100082 | 1 |
| 5 | Reaction Chamber | – | 1 | – | 1 | – | 1 |
| 6 | Sponge | 1140700014 | 2 | 1140700016 | 2 | 1140700012 | 2 |
| 7 | Cross Connecion | – | 1 | – | 1 | – | 1 |
| 8 | O Ring | 1050100090 | 1 | 1050100091 | 1 | 1050100091 | 1 |
| 9 | O Ring | – | 1 | – | 1 | – | 1 |
| 10 | Valve | – | 1 | – | 1 | – | 1 |
| 11 | Fitting | – | 1 | – | 1 | – | 1 |
| 12 | Rubber shim | 1050300011 | 1 | 1050300010 | 1 | 1050300010 | 1 |
| 13 | O Ring | 1050100090 | 1 | 1050100091 | 1 | 1050100092 | 1 |
| 14 | Water Pump | VarioS 2 | 1 | VarioS 4 | 1 | VarioS 6 | 1 |
| 14.1 | union | 2042000007 | 1 | 1042000033 | 1 | 1042000036 | 1 |
| 15 | Valve | 1042400016 | 2 | 1042400016 | 2 | 1042400016 | 2 |
| 16 | CO2 Check Valve | 1041700022 | 1 | 1041700022 | 1 | 1041700022 | 1 |
| 17 | Valve | 1041700023 | 1 | 1041700023 | 1 | 1041700023 | |
| Article Code | Items | CalReact 3000D | CalReact 5000D | ||
| Model No. | Qty | Model No. | Qty | ||
| 1 | PH Probe Holder | 4030401001 | 1 | 4030401001 | 1 |
| 2.1 | Main Chamber Cover | – | 1 | – | 1 |
| 2.2 | Second Chamber Cover | – | 1 | – | 1 |
| 3 | Bracket | 4030405001 | 1 | 4030402002 | 1 |
| 4 | O Ring | 1050100076 | 1 | 1050100082 | 1 |
| 5 | Reaction Chamber | – | 1 | – | 1 |
| 6 | Sponge | 1140700019 | 4 | 1140700016 | 4 |
| 7 | Cross Connecion | – | 1 | – | 1 |
| 8 | O Ring | 1050100091 | 1 | 1050100091 | 1 |
| 9 | O Ring | – | 1 | – | 1 |
| 10 | Valve | – | 1 | – | 1 |
| 11 | Fitting | – | 1 | – | 1 |
| 12 | Rubber shim | 1050300010 | 1 | 1050300010 | 1 |
| 13 | O Ring | 1050100091 | 1 | 1050100092 | 1 |
| 14 | Water Pump | VarioS 4 | 1 | VarioS 6 | 1 |
| 14.1 | union | 1042000033 | 1 | 1042000036 | 1 |
| 15 | Valve | 1042400016 | 2 | 1042400016 | 2 |
| 16 | CO2 Check Valve | 1041700022 | 1 | 1041700022 | 1 |
| 17 | Valve | 1041700023 | 1 | 1041700023 | 1 |
1. CalReact
| Product | Wet/Dry | Pump Power | Diameter | Footprint | Height | Media Capacity | Inlet/Outlet Size | Tank Volume | Fitting Pump Suggestion | ||||||||
| W | mm | inch | mm | inch | mm | inch | L | US Gal | L | US Gal | L/H | Gph | |||||
| CalReact 140 | Both | 25 | 140 | 5.5 | 310 | 230 | 12.2 | 9.1 | 580 | 22.9 | 3.9 | 1.0 | Ф6.3 mm (1/4″) | 400-800 | 106-211 | 500-800 | 132-211 |
| CalReact 200 | Both | 40 | 200 | 7.9 | 385 | 270 | 15.2 | 10.6 | 580 | 22.9 | 7.9 | 2.1 | Ф6.3 mm (1/4″) | 1100-1800 | 290-475 | 500-800 | 132-211 |
| CalReact 220 | Both | 70 | 220 | 8.7 | 420 | 280 | 16.5 | 11.0 | 580 | 22.9 | 9.3 | 2.5 | Ф6.3 mm (1/4″) | 1400-2100 | 370-554 | 500-800 | 132-211 |
| CalReact 3000D | Both | 40 | 170 | 6.7 | 400 | 340 | 15.8 | 13.4 | 580 | 22.9 | 11.5 | 3.0 | Ф6.3 mm (1/4″) | 1500-2200 | 396-582 | 500-800 | 132-211 |
| CalReact 5000D | Both | 70 | 200 | 7.9 | 460 | 385 | 18.1 | 15.2 | 580 | 22.9 | 15.2 | 4.0 | Ф6.3 mm (1/4″) | 1600-2300 | 423-608 | 500-800 | 132-211 |
2.Circulation Pump
| Product | Model No. | Wet/Dry | Power | Max Head Height | Maximum Flow Rate | ||
| W | m | Ft. | L/H | Gph | |||
| CalReact 140 | VarioS 2 | Both | 25 | 4.0 | 13.1 | 3000 | 792 |
| CalReact 200 | VarioS 4 | Both | 40 | 4.5 | 14.7 | 4000 | 1056 |
| CalReact 220 | VarioS 6 | Both | 70 | 4.9 | 16.0 | 6500 | 1720 |
| CalReact 3000D | VarioS 4 | Both | 40 | 4.5 | 14.7 | 4000 | 1056 |
| CalReact 5000D | VarioS 6 | Both | 70 | 4.9 | 16.0 | 6500 | 1720 |

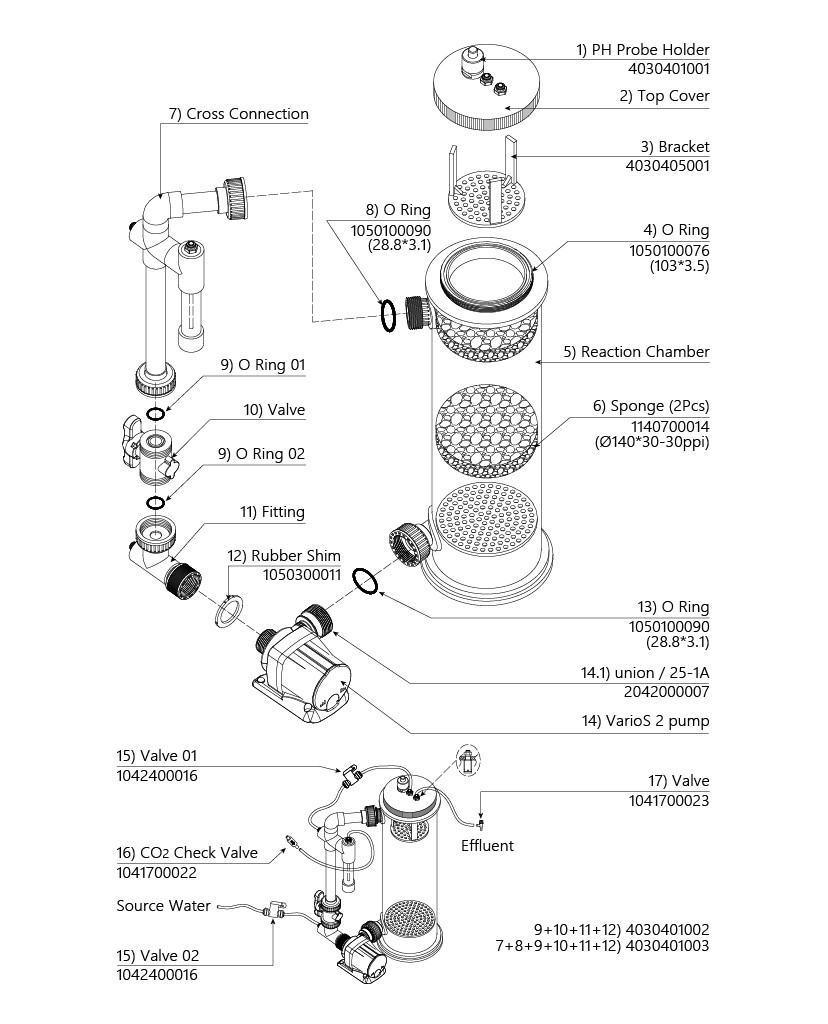

Explosion Chart for CalReact 140

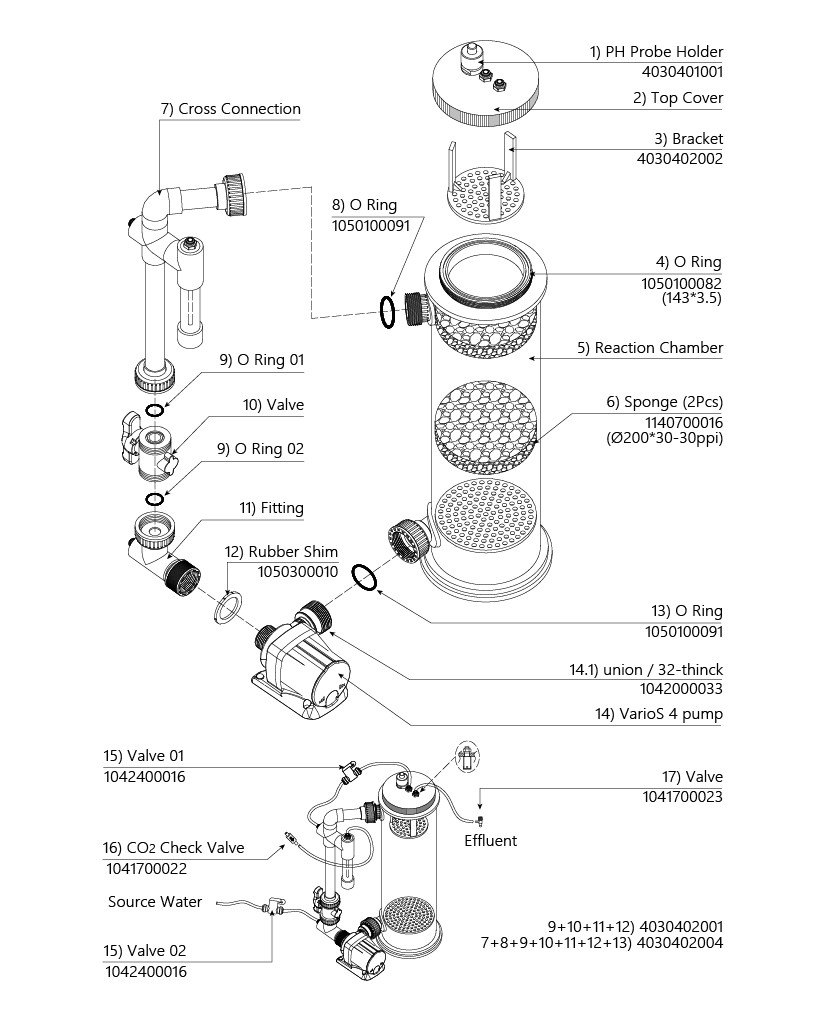

Explosion Chart for CalReact 200

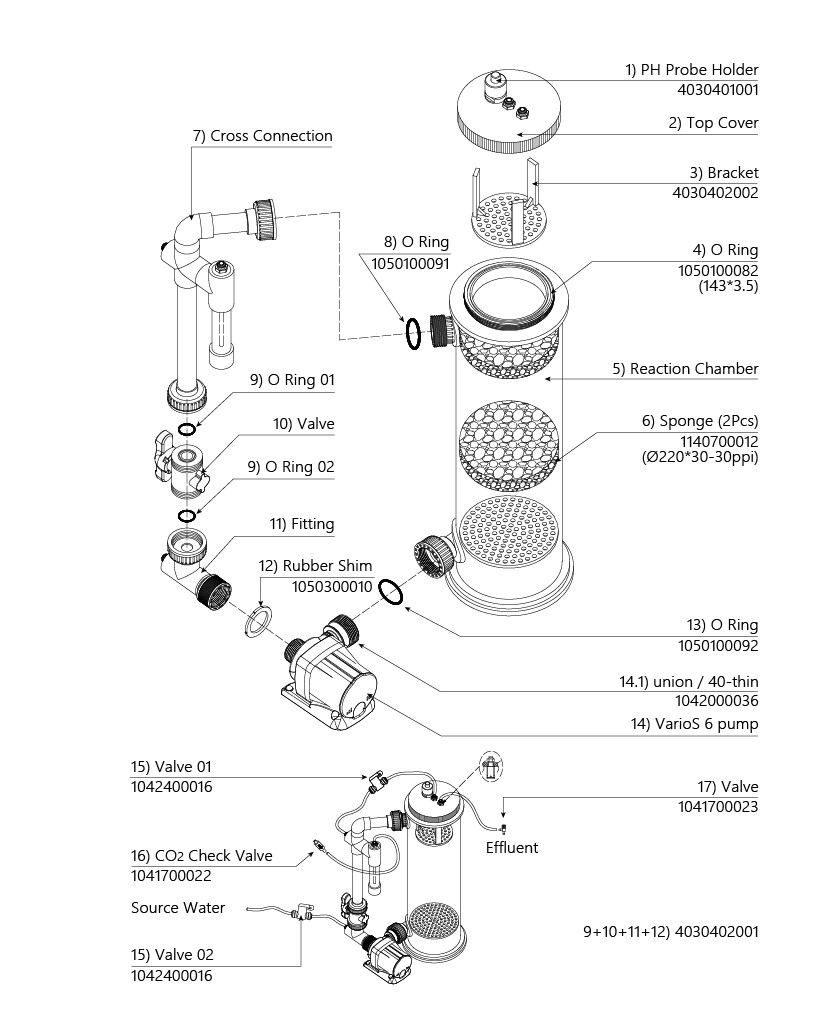

Explosion Chart for CalReact 220

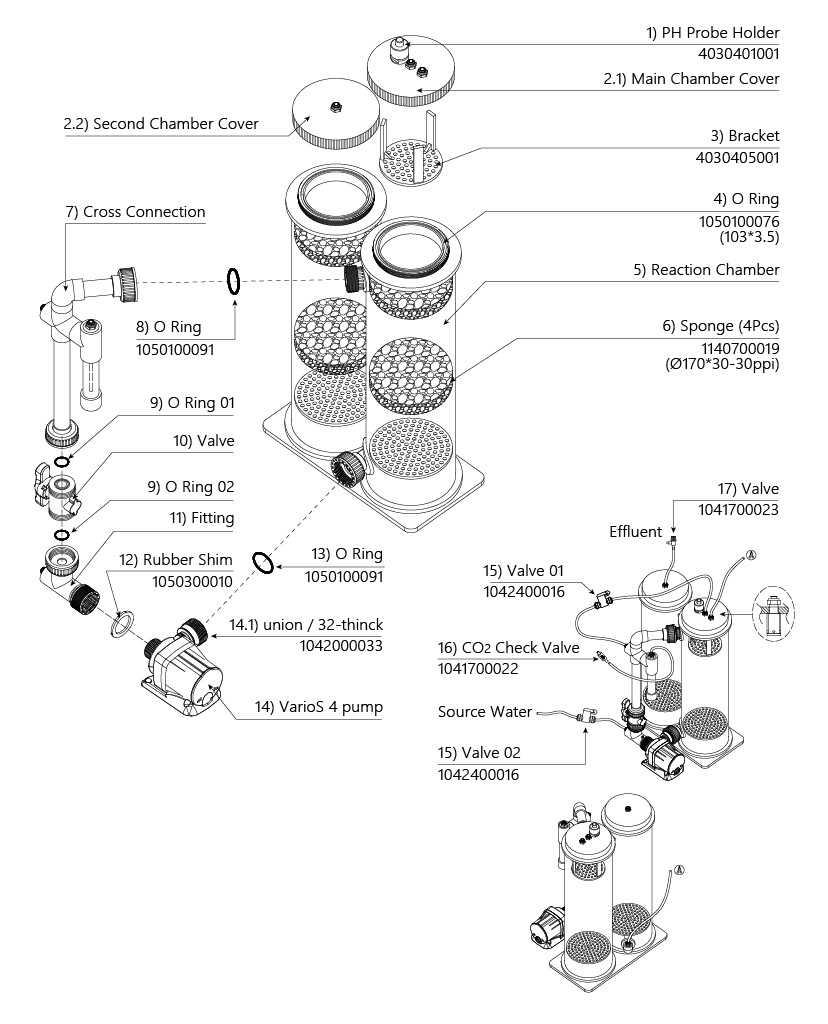

Explosion Chart for CalReact 3000D

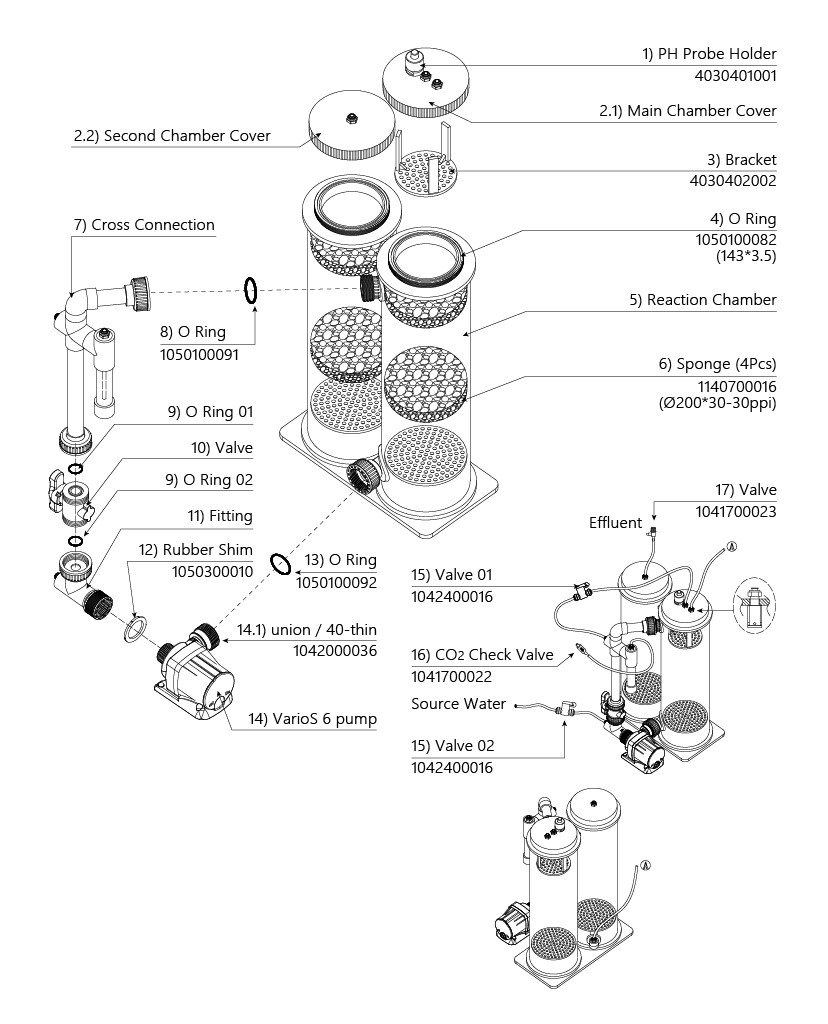

Explosion Chart for CalReact 5000D
Not Available
Not Available
